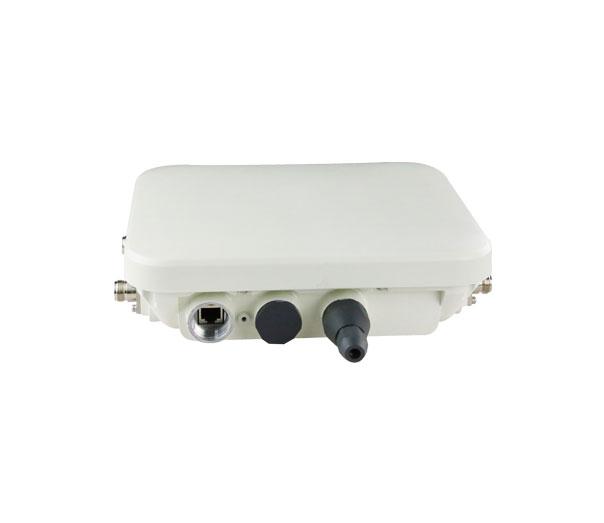

AC1200 Outdoor High Power Access Point
WP882 gigabit outdoor high power dual-band wifi access point is a high-stability, cost-effective 2.4 GHz +5GHz high-power dual-frequency outdoor wireless access point AP launched by Shenzhen Ceres Technology Co., Ltd. (hereinafter referred to as Ceres), designed for the enterprise market. This outdoor AP adopts waterproof, lightning protection, dust-proof and UV protection design, cast aluminum structure + integrated antenna structure, good thermal design support -40~60 degrees Wide temperature environment, suitable for all-weather applications. The stable performance makes this business wifi access point the ideal equipment for outdoor installation.
WP833/WP882 AC1200 dual band gigabit ceiling mounted wireless access point adopts Qualcomm enterprise-class chip and equipment. The product supports PoE power supply or DC48V power supply, also supports 802.11a/b/g/n/ac wireless standard. WP882 high-power and high-capacity outdoor wifi access point supports a 2.4G/5G dual-band (400Mbps + 867Mbps) wireless transmission rate. It can meet the needs of a variety of commercial wireless networks, providing cost-effective wireless coverage.
Hardware Specification
|
Attribute
|
WP882
|
Dimensions
|
239mmX195mmX85mm
|
Interface
|
1*10/100/1000Mbps Ethernet port,1*SFP optical port(optional), 1*Console port
|
Rate
|
400Mbps+867Mbps
|
Antenna
|
Built-in antenna and external antenna (optional)
(4 N type RF connector)
|
Wireless Transmit Power
|
² 2.4GHz:
² 11b11Mbps:24dBm;
² 11g6Mbps :24dBm;
² 11g54Mbps:24dBm;
² 11n MCS7-HT20:24 dBm;
² 11n MCS7-HT40:24dBm;
² 5GHz:
² 11a6Mbps :23dBm;
² 11a54Mbps :21dBm;
² 11n MCS7-HT20:21dBm;
² 11n MCS7-HT40:21dBm;
² 11ac MCS8-VHT20 :20dBm;
² 11ac MCS9-VHT40 :19dBm;
² 11ac MCS9-VHT80 :19dBm;
|
Receiver Sensitivity
|
² 2.4GHz:
² 11b11Mbps:-90dBm;
² 11g6Mbps:-90dBm;
² 11g54Mbps:-75 dBm;
² 11n MCS7-HT20:-71dBm;
² 11n MCS7-HT40:-68dBm;
² 5GHz:
² 11a6Mbps:-90dBm;
² 11a54Mbps :-75 dBm;
² 11n MCS7-HT20:-71dBm;
² 11n MCS7-HT40:-68dBm;
² 11ac MCS8-VHT20:-65 dBm;
² 11ac MCS9-VHT40:-63 dBm;
² 11ac MCS9-VHT80:-61 dBm;
|
CPU
|
Qualcomm processor
|
Memory
|
256M DDR3L
|
Flash
|
32M
|
Power supply
|
POE
|
Operating Temperature
|
-10~50℃
|
Storage Temperature
|
-40~85℃
|
Operating Humidity
|
5~95%(non condensation)
|
Consumption
|
<18W
|
Software Specification
|
Attribute
|
WP882
|
WLAN
|
Support IEEE801.11a/b/g/n/ac/ac wave2 standard
Support dynamic rate adjustment
Support channel automatic scanning and manual selection
Support dynamic power adjustment and manual power adjustment
Support intelligent roaming
Support ShortGI in 20M,40M,80M mode
Support Chinese SSID
Support WMM, implementing data processing and forwarding based on application
Support 5G access priority
Support load balance based on AP traffic, frequency band, and number of users
|
Security
|
Support Open-system authentication mode
Support WEP authentication/encryption mode
Support WPA/WPA2-PSK authentication/encryption mode
Support WPA/WPA2-802.1X authentication/encryption mode
Support WPA-WPA2 hybrid authentication mode
Support WPAI authentication/encryption mode
Support 802.1X, Mac, portal, WeChat authentication mode
|
Network
|
Support business traffic local forwarding and centralized forwarding
Support user access isolation under the same SSID
Support user access (ACL)
Support bandwidth control based on per user
Support bandwidth speed limit based on WAN port
Support network detection based on Ping and Arp
Support local forwarding mode, when the AP is disconnected from the AC, the service is not interrupted.
Support DHCP Server, the client obtains the IP address through the AP
Support static IP/DHCP/PPPOE and other network access mode
Support IPV6 function
Support Soft GRE function
|
Management
|
Support cloud service mode deployment (ACS+VAP)
Support AC centralized management
Support Web User Management (HTTPS)
Support CLI (SSH) management
Support Console port management
Support modify AP login password remotely
Support AP automatically go online and load configuration (plug and play)
Support LED light control
Support periodic automatic restart of devices
Support batch modification of AP management platform address
Support batch upgrade based on AP location, AP model, AP version
Support AP status alarms
|
Ordering Information
|
Product Model
|
Product Description
|
WP882
|
1*10/100/1000M Ethernet port, 1*SFP optical port optional, 1*Console port, support 2.4G/5G dual-frequency(400Mbps+867Mbps), support built-in or external 2X2MIMO antenna optional, support 802.11a/b/g/n/ac-wave2 protocol,support 802.3at PoE+ power supply, support built-in storage optional
|
